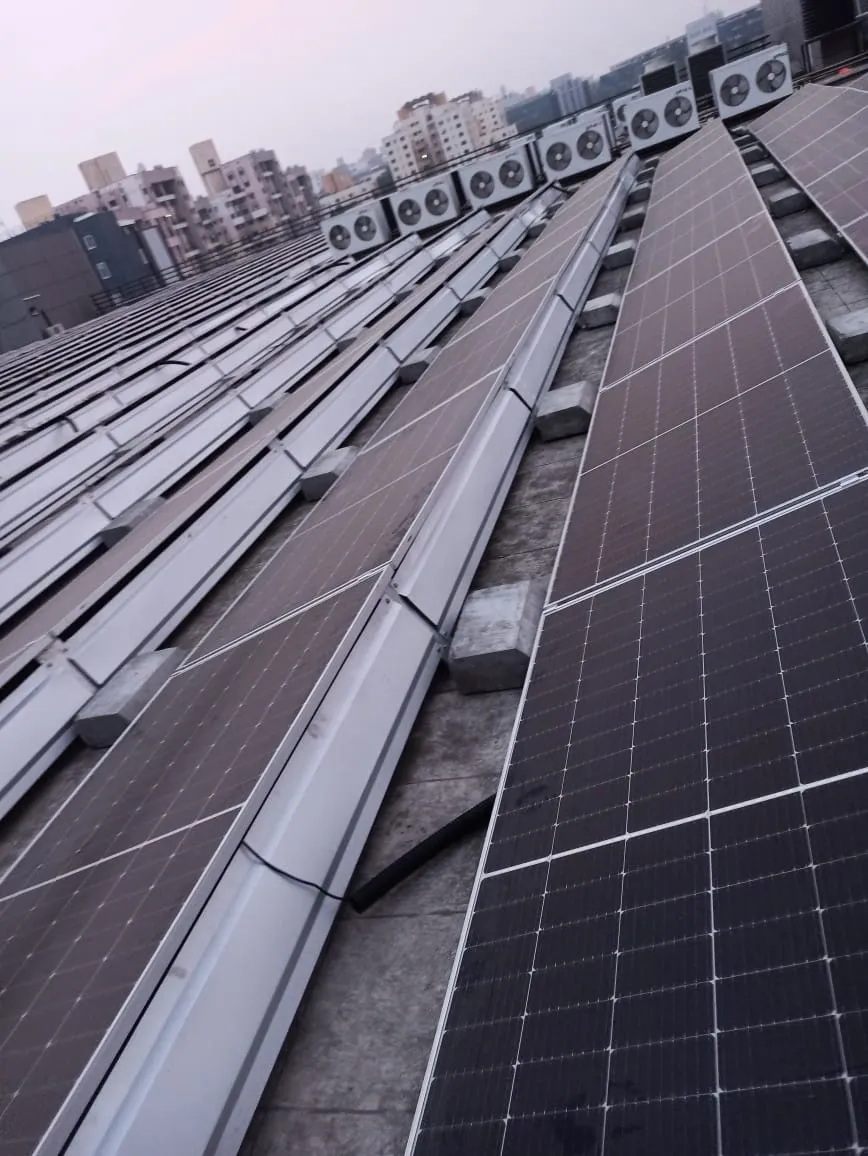

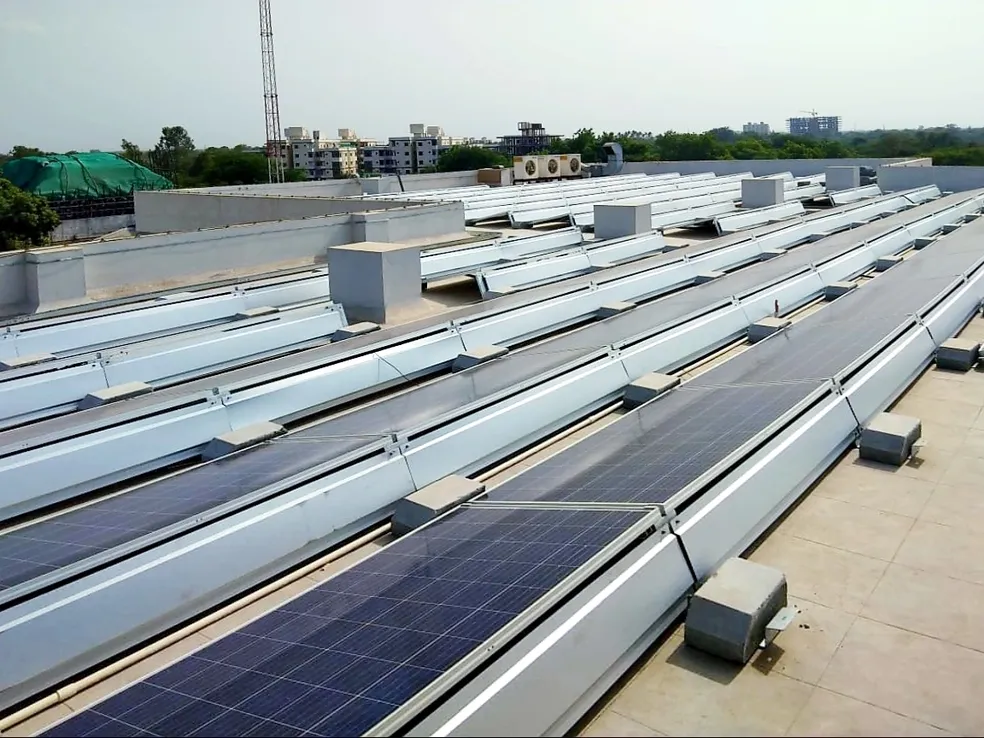

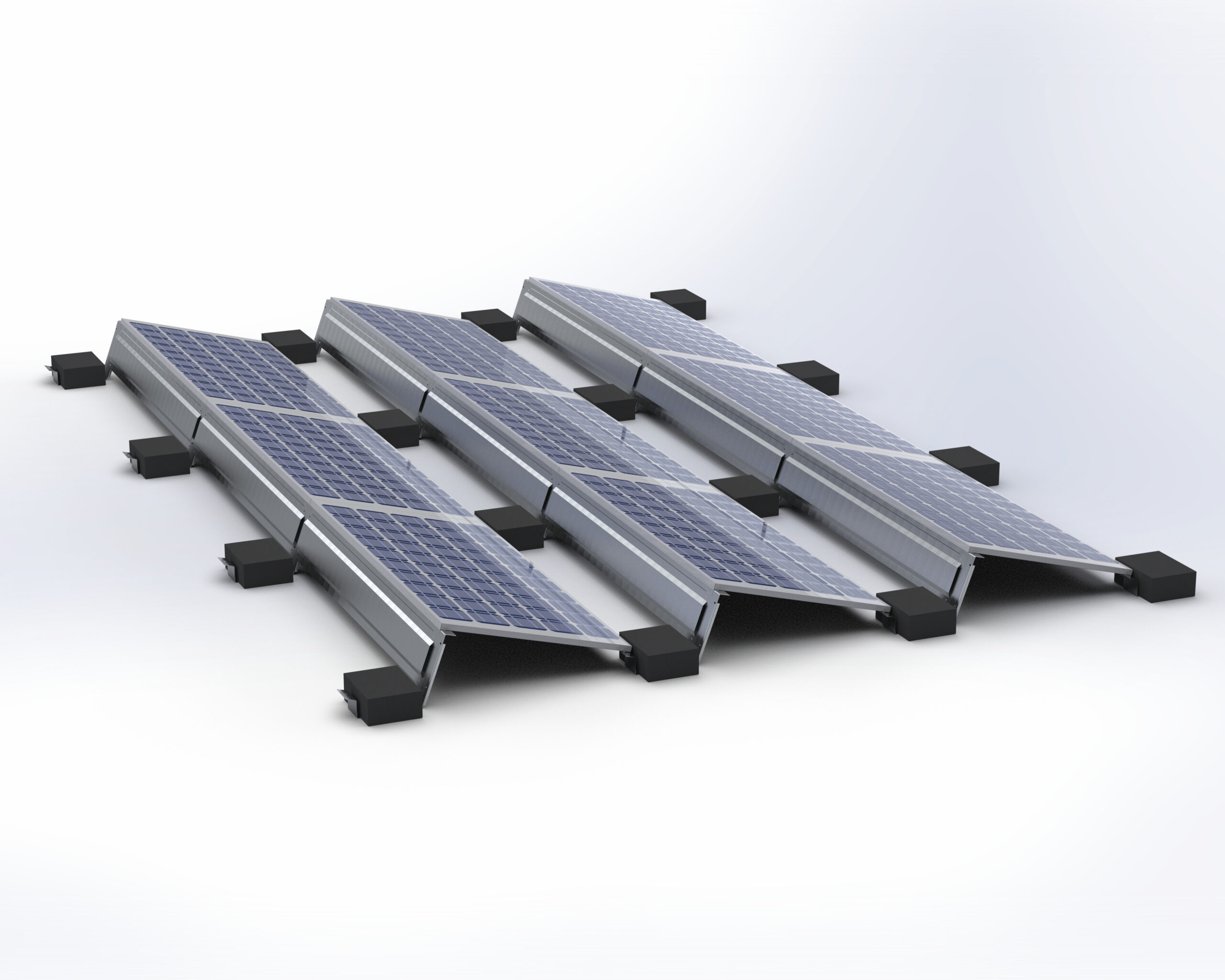

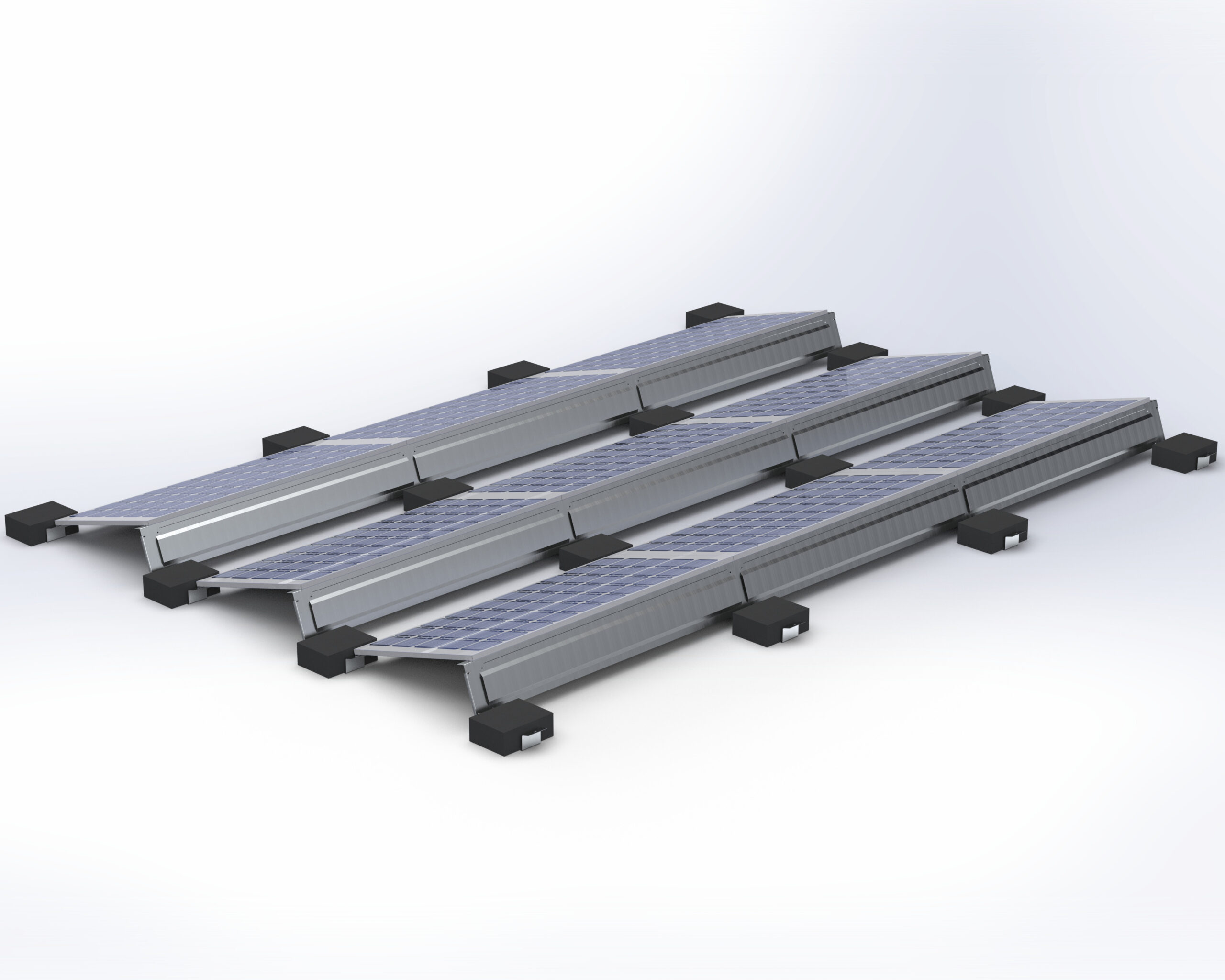

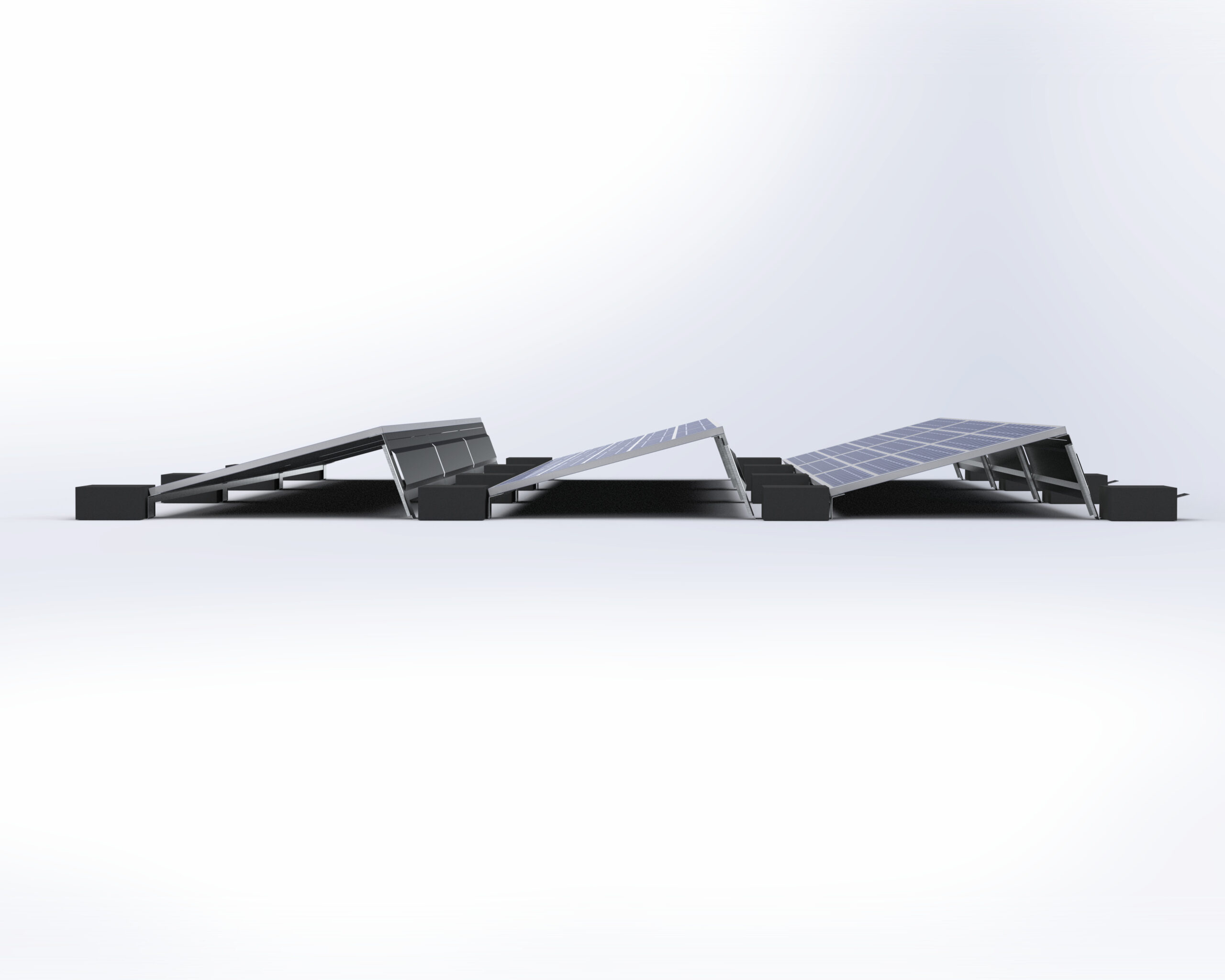

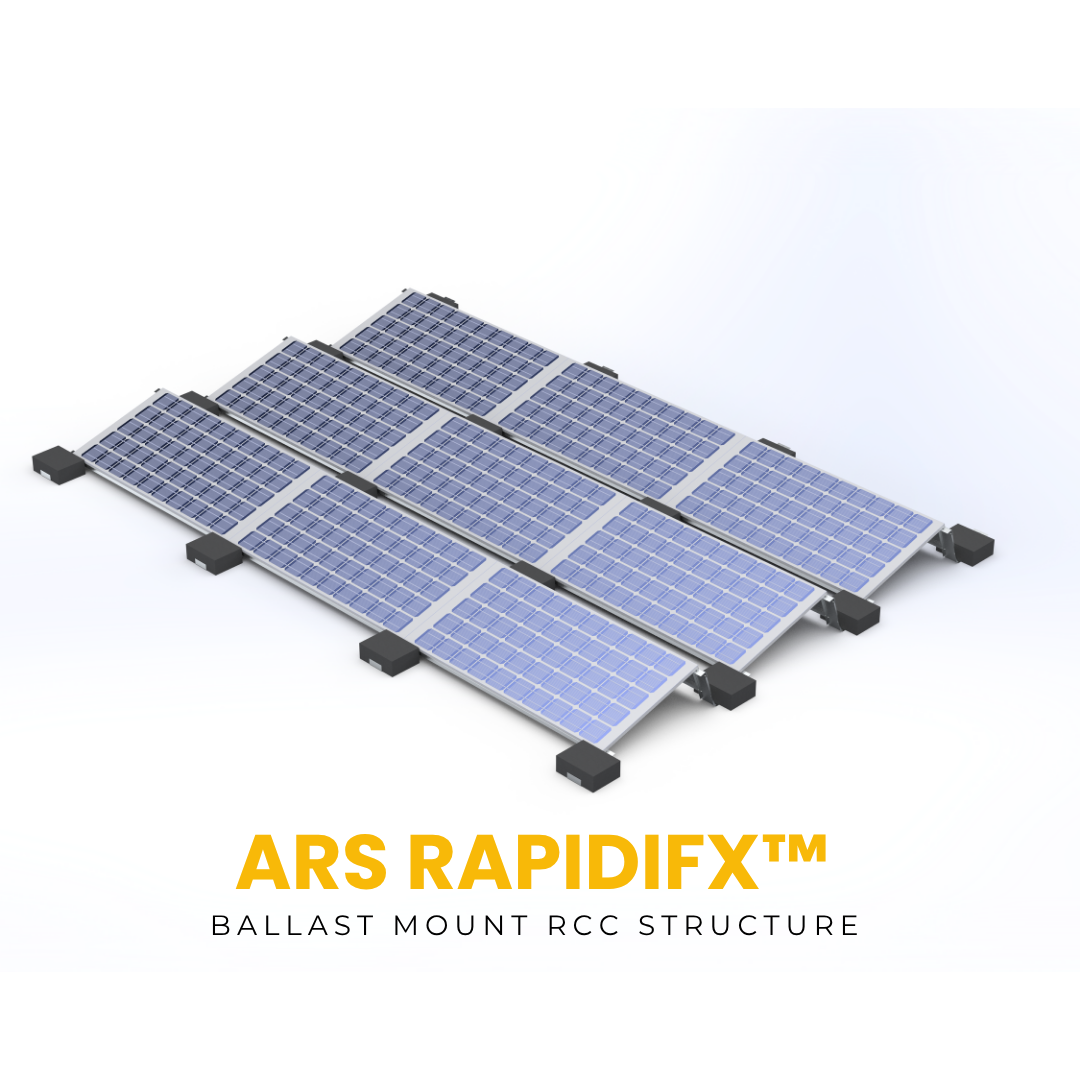

RapidFix Ballast Mounting System
RapidFix is ARS Solartech’s advanced ballasted racking system, designed for flat commercial rooftops. With a streamlined structure and minimal components, RapidFix delivers faster installations, protects your roof integrity, and withstands demanding wind loads — all without penetrating the roof surface.
Non-Penetrating, Roof-Safe Design
Ideal for flat rooftops — protects roof integrity while handling high wind loads with no surface penetration.
Minimal Parts, Maximum Speed
Streamlined components make installation quicker and simpler — perfect for time-sensitive commercial projects.
Why RapidFix?
Non-Penetrating Design
No roof drilling, no leaks - Keeps waterproofing intact and eliminates long-term concerns of water ingress Integrated rubber protection mats come pre-attached, ensuring safe placement and reducing rooftop preparation time
Simplified Installation
Minimal parts reduce on-site complexity Single tool assembly and single point grounding per array (UL 2703 compliant) streamline the process. Lower installation costs with faster project delivery.
For Harsh Conditions
Engineered for wind speeds up to 180 km/h, tested using Autodesk Flow Design simulations Wind deflectors included to maintain stability and optimize aerodynamics Suitable for building heights up to 18.3 m and roof pitches up to 5°.
Applications
Commercial buildings
Industrial facilities
Warehouses and logistics hubs
Retail centers and institutions with flat roofs
Industrial facilities
Warehouses and logistics hubs
Retail centers and institutions with flat roofs
Technical Specifications
|
Specification
|
Details
|
|---|---|
|
Inclinations
|
5°, 10°, 12°, 15°, 20°
|
|
Ground Clearance
|
Up to 150 mm
|
|
Panel Orientation
|
Landscape, Portrait (5°)
|
|
Roof Compatibility
|
All flat roofs
|
|
Cable Management
|
Integrated routing options
|
|
Warranty
|
10-year standard product warranty
|
Smart, Sustainable Rooftop Solar
-
Ballasted Solar Racking:
Avoids roof penetrations, extends building life. -
High-Grade Materials:
Corrosion-free aluminium and GPSP components for low maintenance and long system life. -
Sustainable Choice:
Reduces site disruptions, aligns with green building standards.

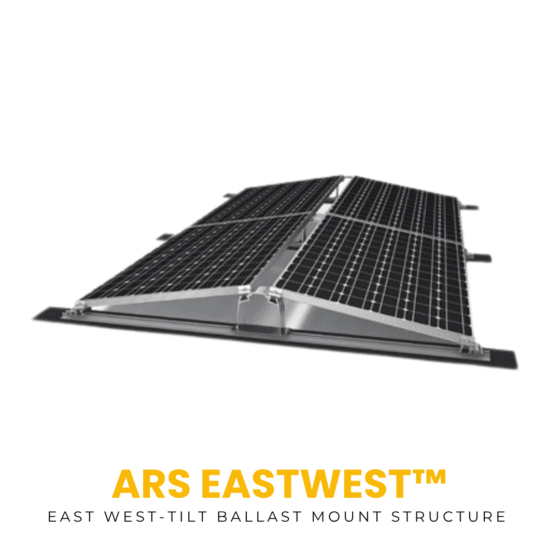

ARS EatWest™ Ballast Mounting Structure
ARS EatWest™ – East West facing Ballast mount
ARS EastWest™ is a specialized dual-slope mounting structure for east–west panel orientation. To Use of maximum space available to achieve highest yeild Dual-tilt design: modules face East and West in alternating rows Best suited for limited-space rooftops requiring higher DC capacity
Non-Penetrating, Roof-Safe Design
Ideal for flat rooftops — protects roof integrity while handling high wind loads with no surface penetration.
Maximum Yeild at less space
Best suited for limited-space rooftops requiring higher DC capacity Reduces shadowing losses and maximizes flat roof coverage
Built for Long-Term Performance
With RapidFix, you get a system that maximizes rooftop solar without compromising your building envelope.
From faster installations to secure, non-penetrating stability, it’s the smart way to scale your solar portfolio on flat rooftops.
From faster installations to secure, non-penetrating stability, it’s the smart way to scale your solar portfolio on flat rooftops.
