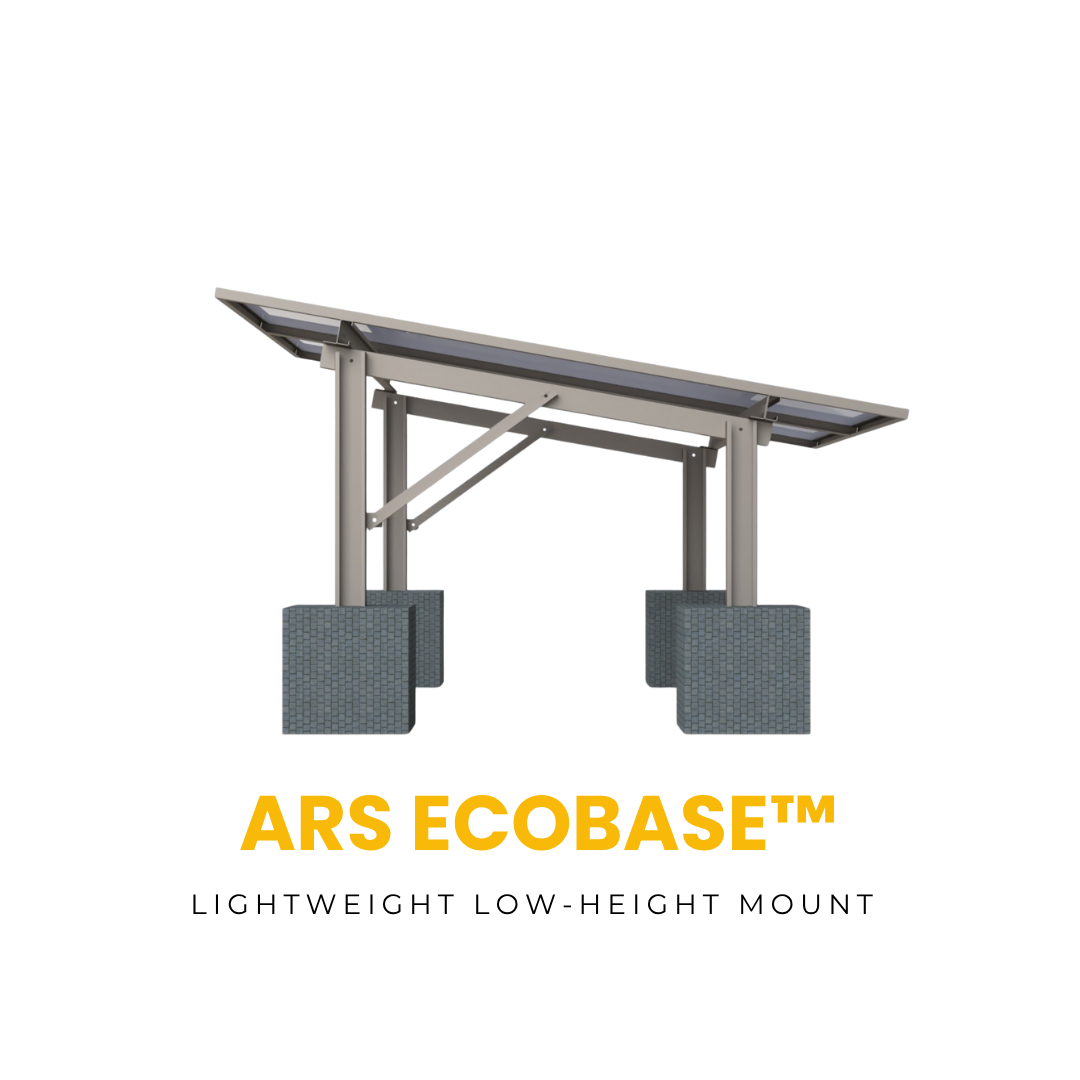

EcoBase™ – Lightweight RCC roof solar Mount
A cost-effective, compact mounting structure designed for fast deployment and minimal roof load. for large scale stadd approved structures. high wind resistance. for height of min 300 mm -1000mm usable for large falt roofs with less obstacles
low height Structures

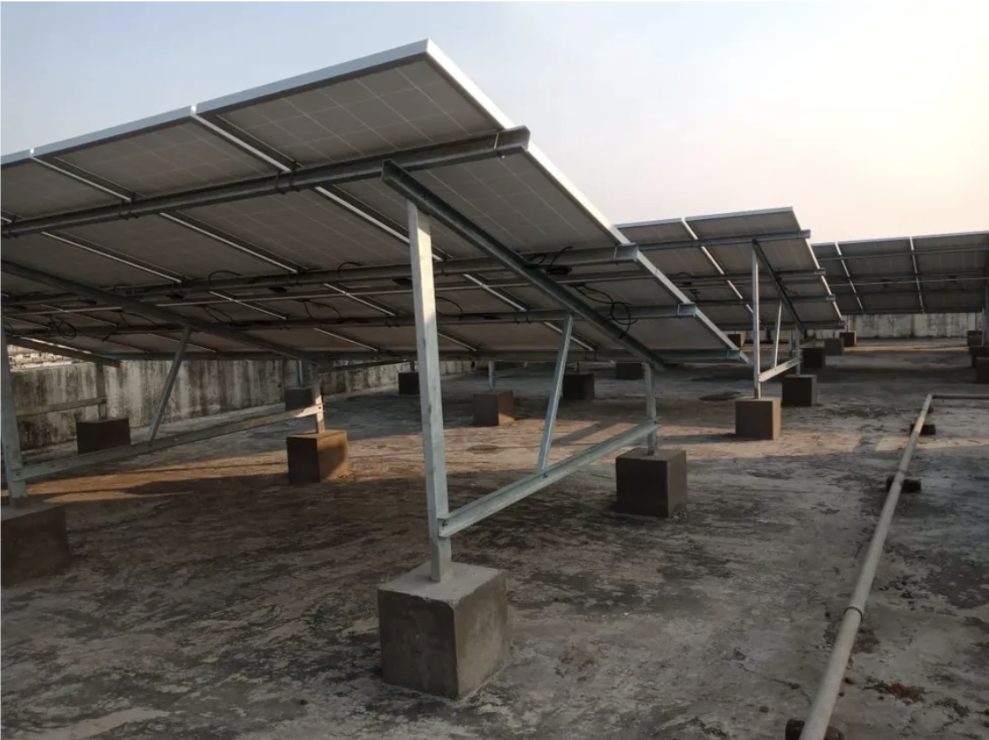

Ideal for large scale installations installation —civil foundations required for counter weight ballast can also be used for counter weight
Minimal Parts, maximum strength
light weight sections for economical solution multiple mounting options in rows 1p to 4p HDG and Galvalume material
Why ECOBASE?
Key features
Economical low-height design with minimal steel Quick-to-fabricate and assemble Ideal for 10–1000kW rooftop systems
Cold formed Sections
Sections: C/U GI profiles (1.5–2.5mm) Anchoring: Mechanical/chemical anchors depending on slab Finish: Pre-GI / 80 µm HDG
Stadd or FEA validation
Engineered for 180KMPH wind speeds solar module mounting structure cutomised designs and long span structures
Applications
Commercial buildings
Industrial facilities
Warehouses and logistics hubs
Retail centers and institutions with flat roofs
Industrial facilities
Warehouses and logistics hubs
Retail centers and institutions with flat roofs
Technical Specifications
|
Specification
|
Details
|
|---|---|
|
Inclinations
|
5°, 10°, 15°, 25°, 26°
|
|
Ground Clearance
|
Elevation <0.3M-0.1m
|
|
Panel Orientation
|
Landscape, Portrait
|
|
Roof Compatibility
|
All flat roofs/ Ground Mount
|
|
Cable Management
|
Integrated routing options
|
|
Warranty
|
10-year standard product warranty
|
low-cost rooftop solar structure
-
Robust Structures:
Cost-effective low-height solution -
High-Grade Materials:
Corrosion-free HDG and GPSP/ galvalume for long system life. -
Sustainable Choice:
Minimal steel usage with rapid deployment
Built for Long-Term Performance
With RapidFix, you get a system that maximizes rooftop solar without compromising your building envelope.
From faster installations to secure, non-penetrating stability, it’s the smart way to scale your solar portfolio on flat rooftops.
From faster installations to secure, non-penetrating stability, it’s the smart way to scale your solar portfolio on flat rooftops.
